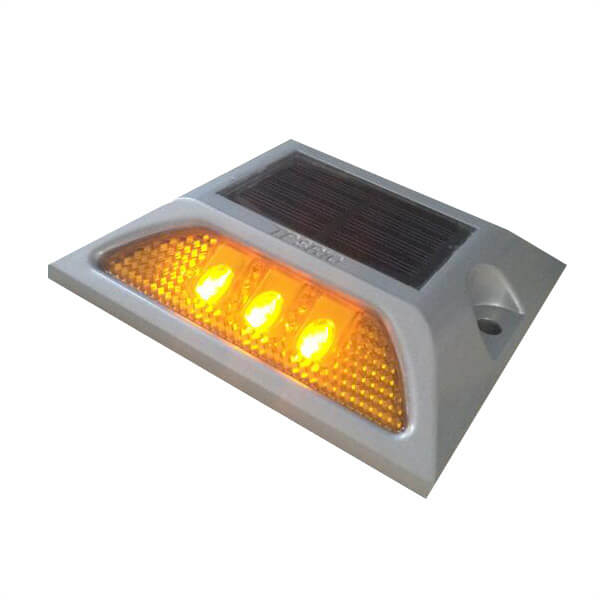

Solar road marker

  • TP-SR-10

  • Topsafe

Availability:
Quantity:

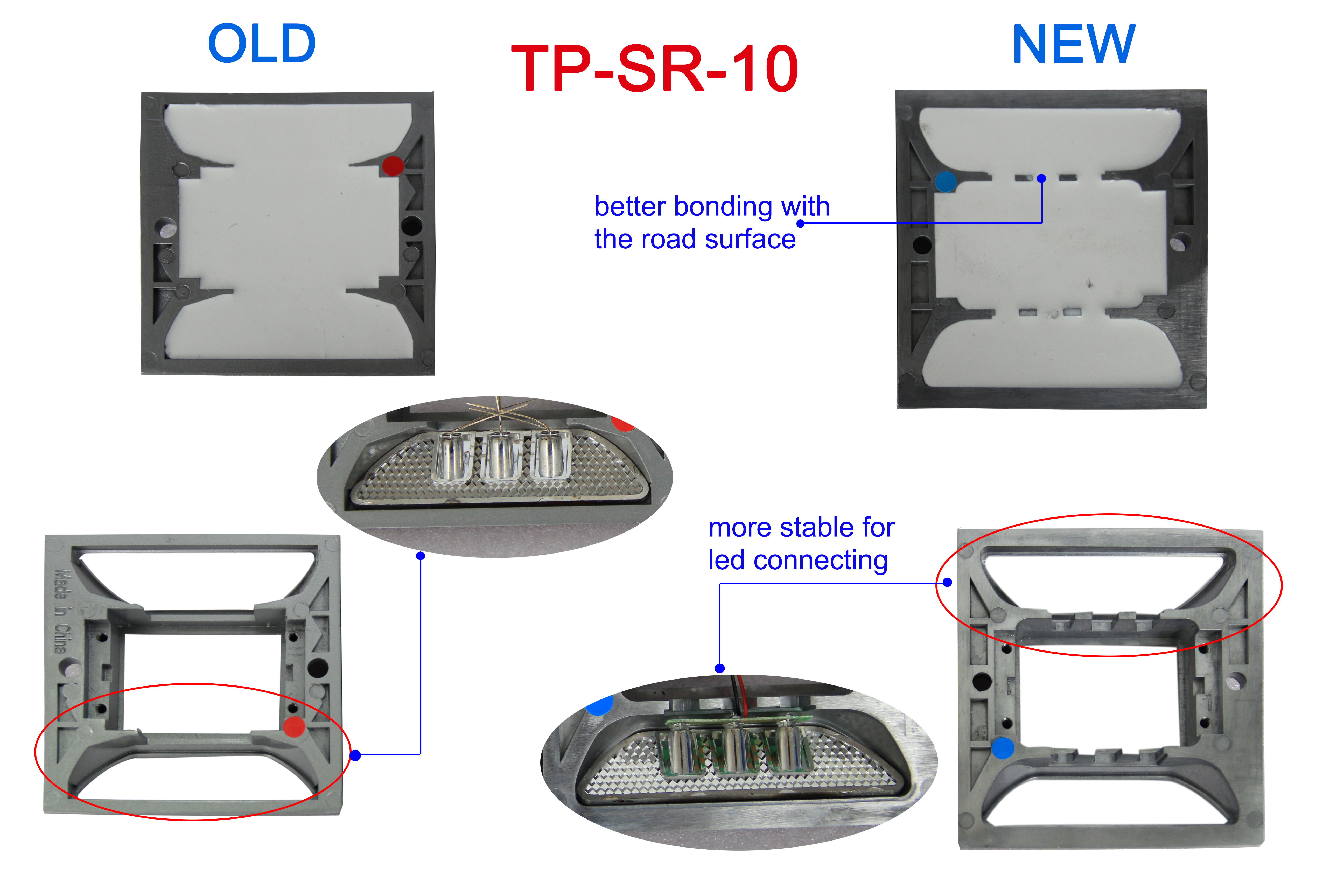

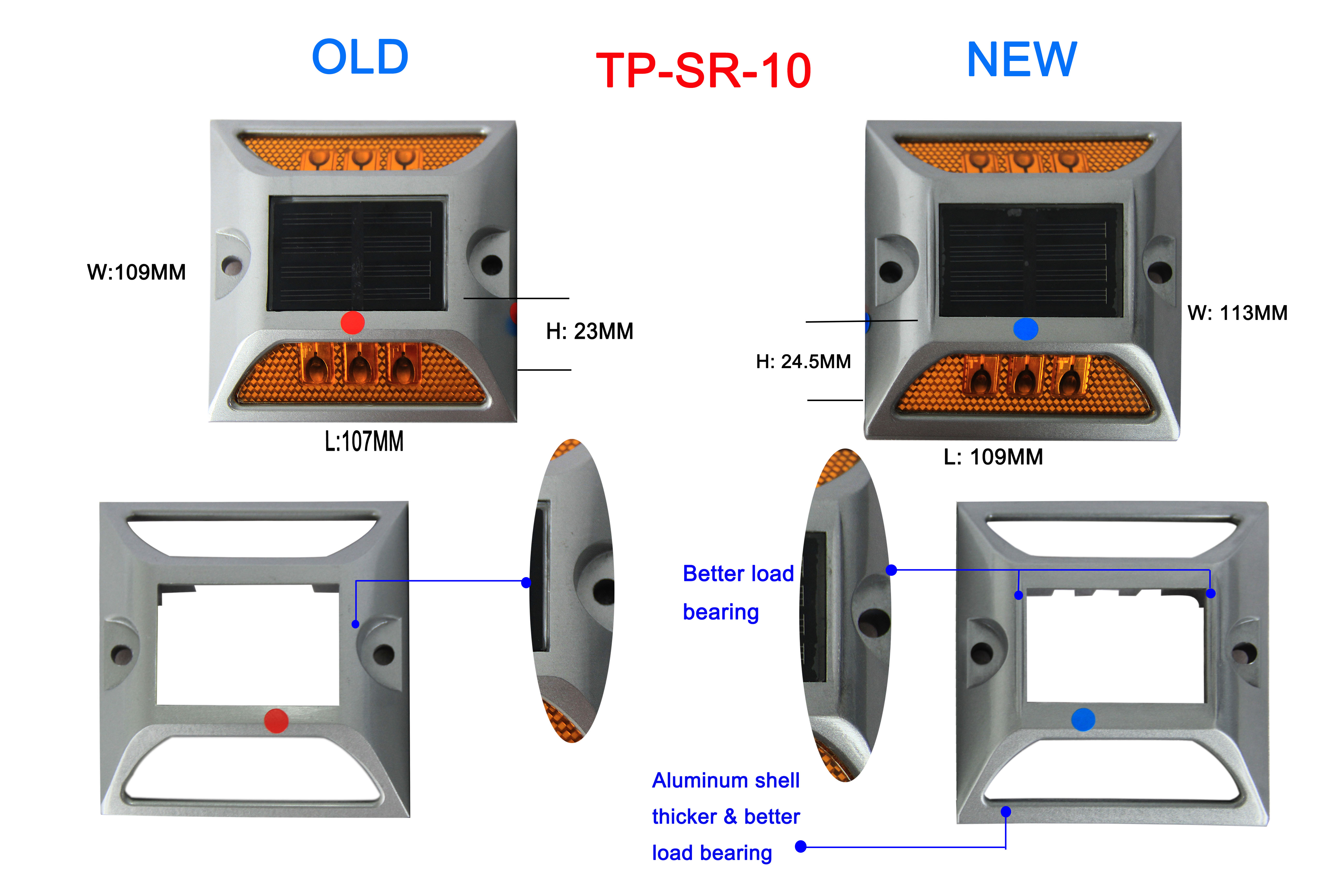

SR10 front side.jpgSR10 back side.jpg

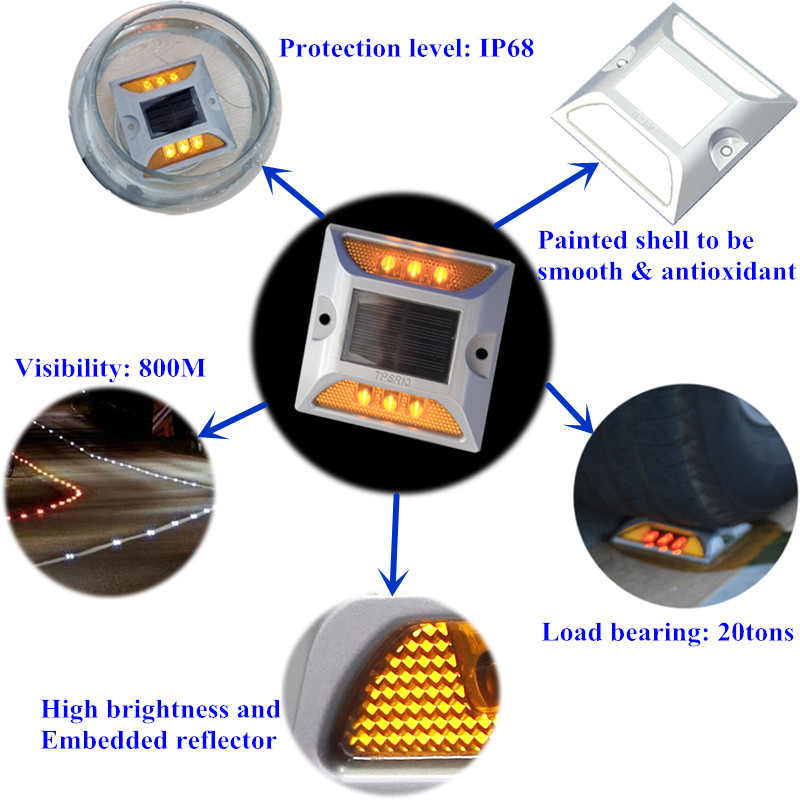

Advantage:

* embedded reflector, won't remove from the stud

* painted shell to be smooth and anti-oxidant

* more brightness reflector

* CE, Protection level IP68, Load bearing 20tons ( got certificate)



Technical Data:

Unit size

109*113*24.5mm

Unit weight

0.39kg

Material

Spraying painted aluminum

Visual distance

1000m

Lifespan

3—5 years

Solar panel

Material

Mono-crystalline silicon

Size

57*38*3mm

Power

2V /0.3W

Storage battery

Type

1PC Anti-high(low) temperature NI-MH Battery

Power

600MAH

Voltage

1.2V

LED

Luminance

5000 lm-8000lm

Color

Red/White/Green/Blue/Yellow(optioned)

Degree

30θ

Wavelength

590±5

Power

2V

Diameter

5mm Epistar brand LED

Quantity

2pcs or 3pcs/side

Flash rate

90times/min

Luminosity mode

Flashing or steady(constant) lighting

Work environment

Temperature

-25°C~+75°C

Protection level

IP68

Warranty

One year, new replacement will be sent if the products can not work normally within one year, delivery cost will be covered by us.
